Rockchip RK3566 chip is a general-purpose SoC specially designed for consumer industry applications. The CPU adopts 4-core A55 architecture processor, integrated G52 graphics processor, built-in independent NPU, and runs Android 11 and Linux systems. RK3566 is mainly customized for consumer products such as tablet computers, speakers with screens, Android notebooks, dictionary pens, etc., as well as face payment POS machines, e-books, cloud terminals, video phones, NAS storage and other industry products.
￥ 0.00
0.00
Rockchip RK3566 chip is a general-purpose SoC specially designed for consumer industry applications. The CPU adopts 4-core A55 architecture processor, integrated G52 graphics processor, built-in independent NPU, and runs Android 11 and Linux systems. RK3566 is mainly customized for consumer products such as tablet computers, speakers with screens, Android notebooks, dictionary pens, etc., as well as face payment POS machines, e-books, cloud terminals, video phones, NAS storage and other industry products.
RK3566 adopts a new independent JPEG decoding processor, which can efficiently and concurrently process multi-small image parsing, supports 1080p 60fps H.264 and H.265 format encoding,
and supports dynamic bit rate, frame rate, resolution adjustment and other functions.

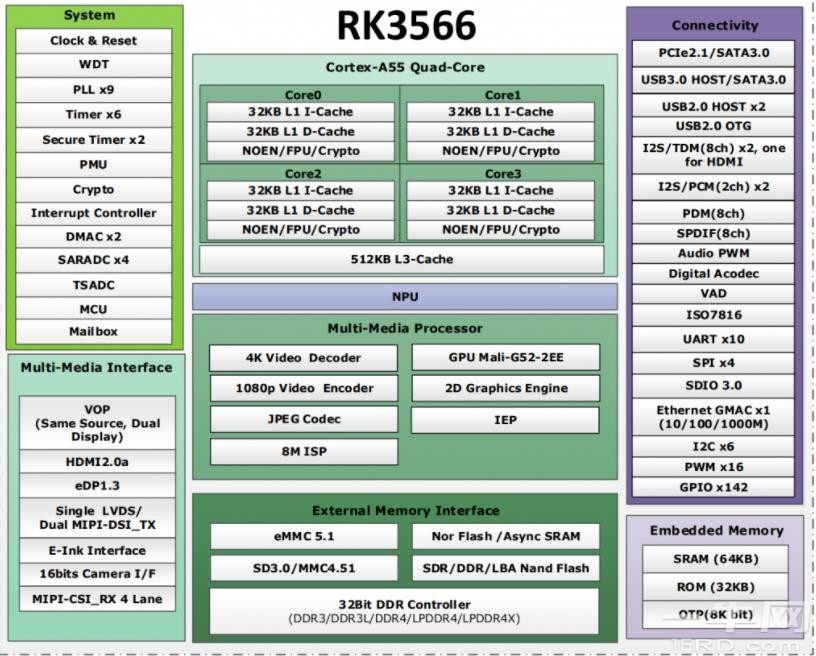

Rockchip RK3566 specification:
CPU • Quad-core 64-bit Cortex-A55, main frequency up to 1.8GHz
GPU • ARM G52 2EE
Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Embedded high performance 2D acceleration hardware
Display • Single display, support eDp/HDMI2.0/MIPI/LVDS/T-CON
Multimedia • Support 4K 60fps H.265/H.264/VP9 video decoding
Support 1080P 60fps H.265/H.264 video encoding
Support 8M ISP
NPU • Support 0.8T computing power
Customized service:
Our company can carry out a full range of customized development and production of software and hardware according to the needs of customers,
and provide a complete set of materials and SDK source code after the development is completed.
