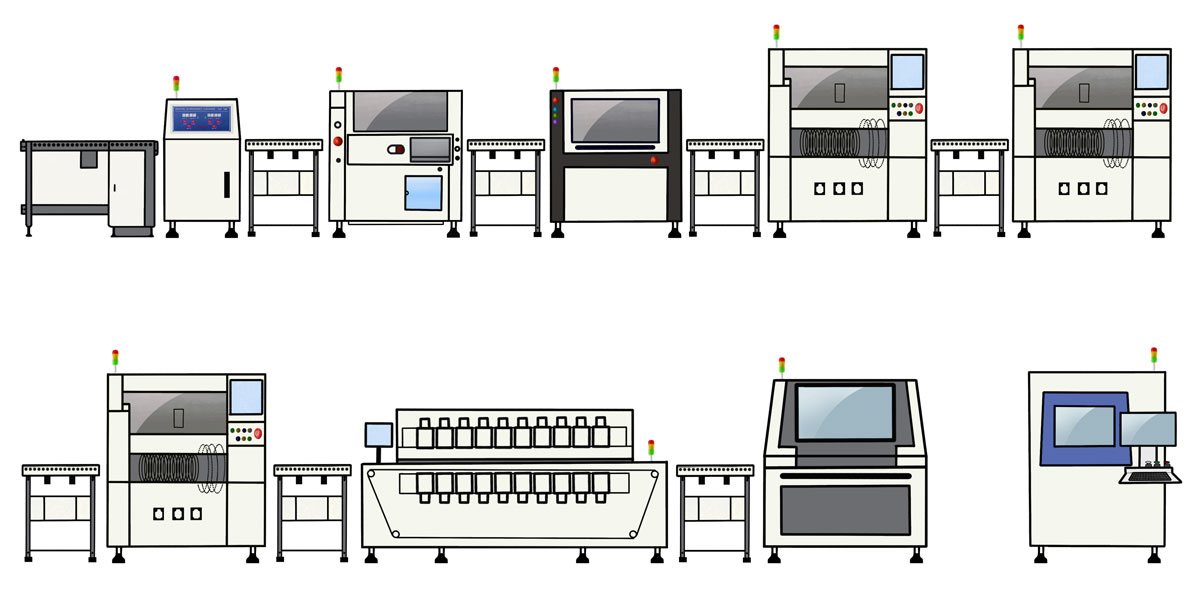

Automatic loading machine

PCB clean M/C

G9+Automatic Paste Print M/C

3D SPI paste inspection M/C

Yamaha YSM24 SMT M/C

Place PCB board inside the SMT machine

Automatic board delivery to suction machine.

Specially designed for cleaning tin beads and reflux trace and scratch.

It does not generate static electricity, and never hurt the PCB board.

Fully automatic, high-precision printing accuracy: ±0.025mm

Repeat accuracy: ±0.01mm

Maximum PCB board size: 610*600mm

Detect missed printing, insufficient tin, excessive tin, continuous tin, misalignment, poor shape, and surface contamination.

Support rapid detection of soldering pads 03015, 01005, 0201.

High speed module machine with high precision, capable of mounting precision components such as 03015 and 01005.

Position: 4*20=80

Speed: 4*3500 solder points/H

Maximum PCB board size: 610*500mm

Yamaha YSM20 SMT M/C

Yamaha YSM10 SMT M/C

Ten temperature zone wave oven

Online AOI inspect M/C

X-Ray

Multi functional SMT machine, capable of mounting 01005 and 0.35mm BGA.

Maximum mounting capacity: 686*508mm

Position: 128. Speed: 25000 solder points/H

Multi functional SMT machine, capable of mounting 01005 and 0.35mm BGA.

Maximum PCB size: 774*710mm

Standing position: 130

Speed: 35000 solder points/H

Lead free, 10 temperature zone, smooth increase temperature, reliable quality, capable of soldering ultra large and ultra thick PCBs.

Temperature control accuracy: Within ±1 ℃, the maximum soldering size is 600mm wide.

High speed mobile photo inspection, 8000mm²/s test PCB board size up to 650*500mm.

Minimum focusing size 0.25um Suitable for open circuit and short circuit detection of BGA, QFN and other components.
